bam-e22/DiscreteSeekBar

Download

Step 1. Add the JitPack repository to your build file

Add it in your root settings.gradle at the end of repositories:

	dependencyResolutionManagement {
		repositoriesMode.set(RepositoriesMode.FAIL_ON_PROJECT_REPOS)
		repositories {
			mavenCentral()
			maven { url 'https://jitpack.io' }
		}
	}

Add it in your settings.gradle.kts at the end of repositories:

	dependencyResolutionManagement {
		repositoriesMode.set(RepositoriesMode.FAIL_ON_PROJECT_REPOS)
		repositories {
			mavenCentral()
			maven { url = uri("https://jitpack.io") }
		}
	}

Add to pom.xml

	<repositories>
		<repository>
		    <id>jitpack.io</id>
		    <url>https://jitpack.io</url>
		</repository>
	</repositories>

Add it in your build.sbt at the end of resolvers:


    resolvers += "jitpack" at "https://jitpack.io"

Add it in your project.clj at the end of repositories:


    :repositories [["jitpack" "https://jitpack.io"]]

Step 2. Add the dependency

	dependencies {
		implementation 'com.github.stack07142:DiscreteSeekBar:v1.0.1'
	}

	dependencies {
		implementation("com.github.stack07142:DiscreteSeekBar:v1.0.1")
	}

	<dependency>
	    <groupId>com.github.stack07142</groupId>
	    <artifactId>DiscreteSeekBar</artifactId>
	    <version>v1.0.1</version>
	</dependency>



    libraryDependencies += "com.github.stack07142" % "DiscreteSeekBar" % "v1.0.1"



    :dependencies [[com.github.stack07142/DiscreteSeekBar "v1.0.1"]]

Readme

DiscreteSeekBar

DiscreteSeekBar allow users to select a specific value from a range.<br /> The thumb snaps to evenly spaced tick marks along the slider rail.

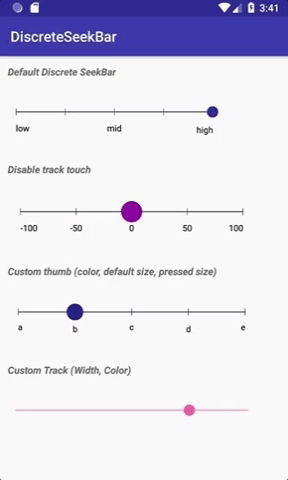

Demo

Installation

Add it in your root build.gradle at the end of repositories:

allprojects {
    repositories {
        ...
        maven { url 'https://jitpack.io' }
    }
}

Add the following dependency to your build.gradle file:

dependencies {
        implementation 'com.github.stack07142:DiscreteSeekBar:1.0.1'
}

Usage

<io.github.stack07142.discreteseekbar.DiscreteSeekBar
    android:id="@+id/slider_1"
    android:layout_width="300dp"
    android:layout_height="wrap_content"
    app:discrete_seekbar_maxValue="400"
    app:discrete_seekbar_minValue="-400"
    app:discrete_seekbar_sectionCount="4"
    app:discrete_seekbar_thumbColor="@color/colorPrimaryDark"
    app:discrete_seekbar_thumbDefaultSize="16dp"
    app:discrete_seekbar_thumbPressedSize="24dp"
    app:discrete_seekbar_tickMarkDrawable="@drawable/tickmark"
    app:discrete_seekbar_tickMarkTextColor="@color/colorBlack"
    app:discrete_seekbar_tickMarkTextSize="12sp"
    app:discrete_seekbar_tickMarkTopMargin="18dp"
    app:discrete_seekbar_trackColor="@color/colorBlueGrey900"
    app:discrete_seekbar_trackTouchEnable="true"
    app:discrete_seekbar_trackWidth="1dp"
    app:discrete_seekbar_value="0" />

val tickMarkTextArr1 = SparseArray<String>()
tickMarkTextArr1.append(-400, "low")
tickMarkTextArr1.append(0, "mid")
tickMarkTextArr1.append(400, "high")

slider_1.getConfigBuilder()
        .setTickMarkTextArray(tickMarkTextArr1)
        .setOnValueChangedListener(object : DiscreteSeekBar.OnValueChangedListener {
            override fun onValueChanged(value: Int) {
                Toast.makeText(applicationContext, "value= $value", Toast.LENGTH_SHORT).show()
            }
        })
        .build()

Check out the sample codes for more details. here
